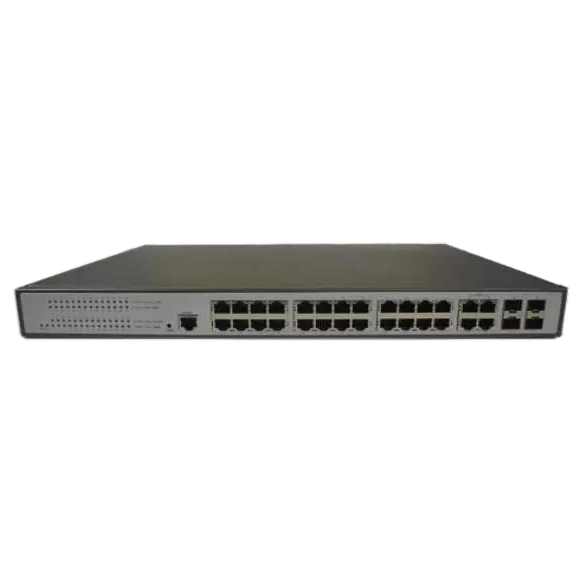

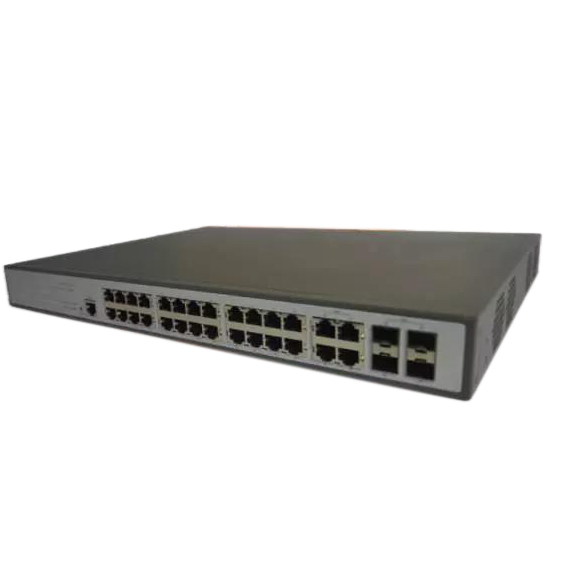

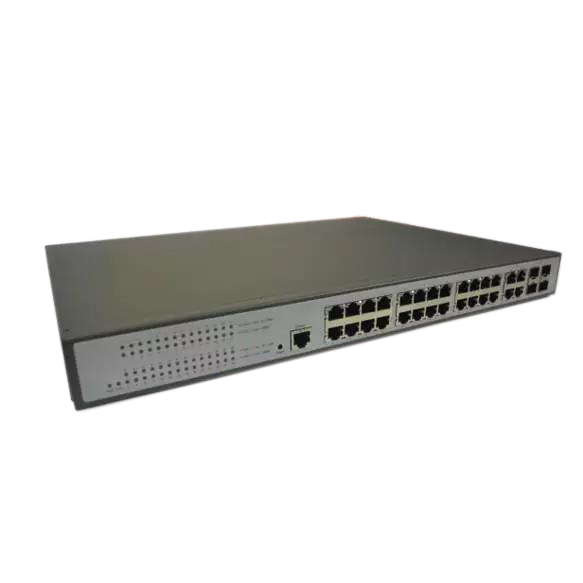

型號：MT-GS3428F-POE

品名：28口全千兆管理型POE交換機


在線詢價
    硬件規格
    端口 24個10/100/1000M自適應端口，支持PoE功能
    4個10/100/1000M Combo端口
    LED指示燈 Power, Link/Act,1000Mbps，POE
    尺寸(L*W*H) 440 mm * 315 mm * 44 mm
    工作環境 工作溫度: 0℃~40℃
    存儲溫度: -40℃~70℃
    工作濕度: 10%~90% 無凝結
    存儲濕度: 5%~90% 無凝結
    整機電源 450W
    POE電源 425W
    軟件規格
    支持標準 IEEE 802.3, 802.3u, 802.3x, 802.3af，802.3at
    CSMA/CD, TCP/IP
    基本功能 兼容符合IEEE 802.3af/802.3at標準的受電設備（PD）
    端口供電優先級功能
    線速轉發
    MAC自動學習與老化
    IEEE802.3X全雙工流控與Backpressure半雙工流控
    背板帶寬 52Gbps
    MAC地址列表 8k
    轉發速率 10BASE-T: 14880pps/port
    100BASE-TX: 148800pps/port
    轉發方式 存儲轉發
    軟件規格
    VLAN Port base VLAN
    ACCESS VLAN
    TRUNK VLAN
    HYBRID VLAN
    802.1Q tagged VLAN
    Max. 4094 VLAN
    IGMP Snooping IGMP v1/v2 Snooping
    Support 256 groups
    MAC address administration MAC address display/inquire
    Static MAC settings
    Dynamic MAC address administration
    MAC address filtering
    Loop detection Support loop detection
    storm control Broadcast/Multicast/Unknown Unicast Storm Control
    Link Aggregation maximum 8 port per group, support 16 group
    LACP dynamic or static aggregation
    Access control Based on MAC source, destination MAC, MAC source and destination MAC, MAC protocol, source IP access control.
    Based on the TCP, IP, UDP, IGMP source IP, destination IP, source IP and destination IP access control
    Security feature VLAN port isolation
    Port +MAC+IP binding
    Port Mirroring - One-to-one
    - Many-to-one
    -By mirroring port transmission, receiving and sending and receiving data
    network management Telnet
    CLI
    WEB (IP:192.168.1.200 ,username/password: admin/admin)
    Port speed limit Egress and ingress speed limit
    DHCPSNOOPING Prevent illegal DHCP server
    Loop detection Detection of Ethernet loop
    ARP attack prevention To prevent the ARP request deception
    To prevent the ARP reply to cheat
    Jumbo Frames 10K
    SNMP SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905,
    RFC1906, RFC1907
    The MIB II;conform to RFC1213
    Ethernet MIB;conform to RFC1643
    The bridge MIB;conform to RFC1493
    RMON Support group 1, 2, 3, 9
    Equipment management Console
    Telnet
    The CLI interface
    WEB UI
    Support the ping
    Check the CPU and memory utilization
    one key to collect fault
