型號：MT-GS3452F

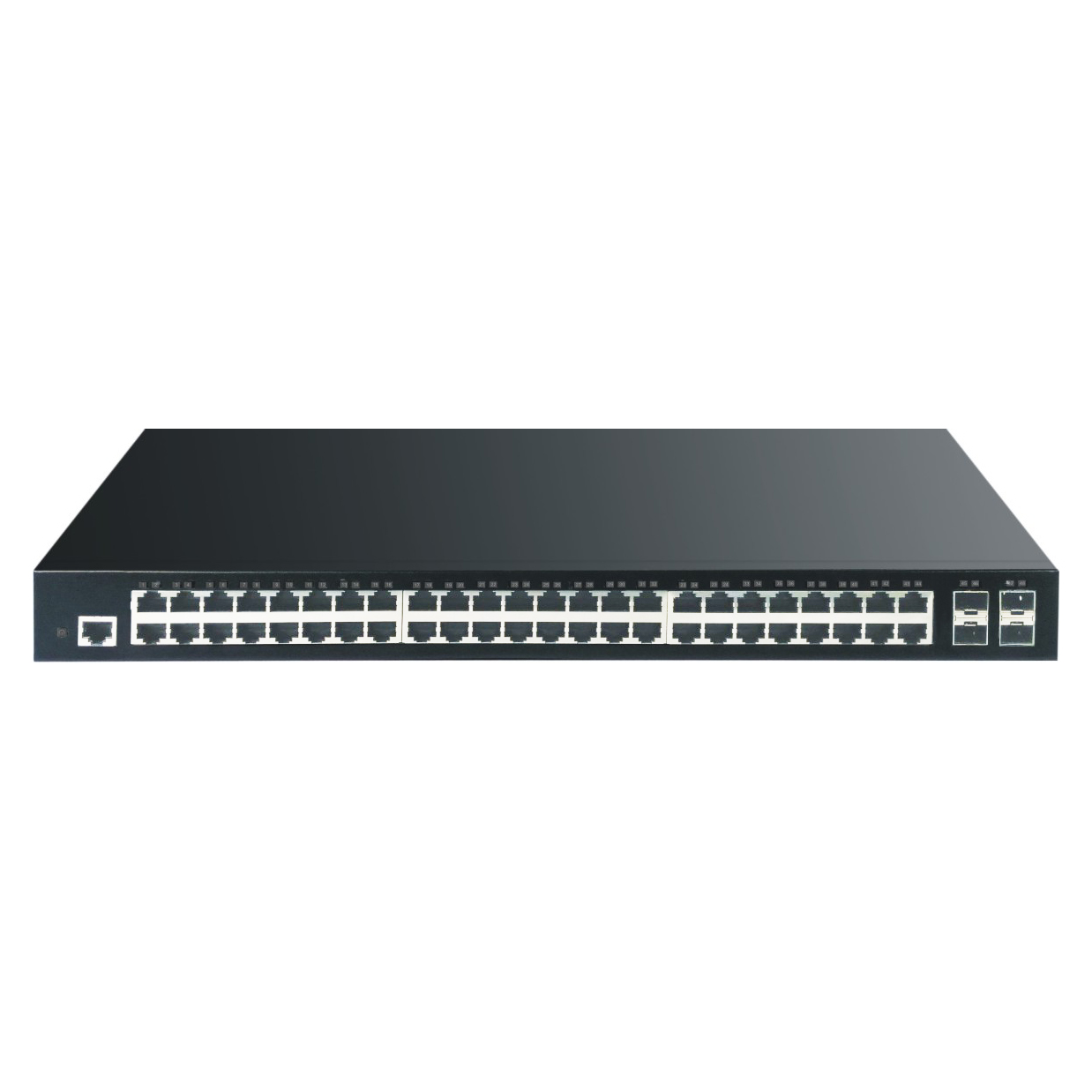

品名：52口全千兆網管型交換機


在線詢價
    端口數 48P 10/100/1000M RJ-45 MDI/MDI-X port
    4P 1000MSFP
    1P Console RJ45
    Flash 32MB
    SDRAM 128MB
    包轉發率 77.4Mpps
    背板帶寬 104Gbps
    交換模式 Store-and-Forward
    MAC地址表 12K
    queue buffer 4MB
    機殼尺寸 440*220*44 (mm)
    電源輸入 AC100-240V
    LED power 、system、Link/Act、100M、1000M
    使用環境 工作溫度： 0℃～50℃；工作濕度10％～90％不凝結
    存儲溫度： -40℃～70℃；存儲濕度5％～90％不凝結

     VLAN    		 Port base VLAN
    ACCESS VLAN
    TRUNK VLAN
    HYBRID VLAN
    802.1Q tagged VLAN
    Max. 4094 VLAN
    IGMP Snooping IGMP v1/v2 Snooping
    Support 256 groups

     MAC address administration    		 MAC address display/inquire
    Static MAC settings
    Dynamic MAC address administration
    MAC address filtering
    Loop detection Support loop detection
    storm control Broadcast/Multicast/Unknown Unicast Storm Control
    Link Aggregation maximum 8 port per group, support 16 group
    LACP dynamic or static aggregation
    Access control Based on MAC source, destination MAC, MAC source and destination MAC, MAC protocol, source IP access control.
    Based on the TCP, IP, UDP, IGMP source IP, destination IP, source IP and destination IP access control
    Security feature VLAN port isolation
    Port +MAC+IP binding
     Port Mirroring - One-to-one
    - Many-to-one
    -By mirroring port transmission, receiving and sending and receiving data
    network management Telnet
    CLI
    WEB (IP:192.168.1.200 ,username/password: admin/admin)
    Port speed limit Egress and ingress speed limit
    DHCPSNOOPING Prevent illegal DHCP server
    Loop detection Detection of Ethernet loop
    ARP attack prevention To prevent the ARP request deception
    To prevent the ARP reply to cheat
    Jumbo Frames 10K

     SNMP    		 SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905,
    RFC1906, RFC1907
    The MIB II;conform to RFC1213
    Ethernet MIB;conform to RFC1643
    The bridge MIB;conform to RFC1493
    RMON
         		 Support group 1, 2, 3, 9
    Equipment management Console
    Telnet
    The CLI interface
    WEB UI
    Support the ping
    Check the CPU and memory utilization
    one key to collect fault
